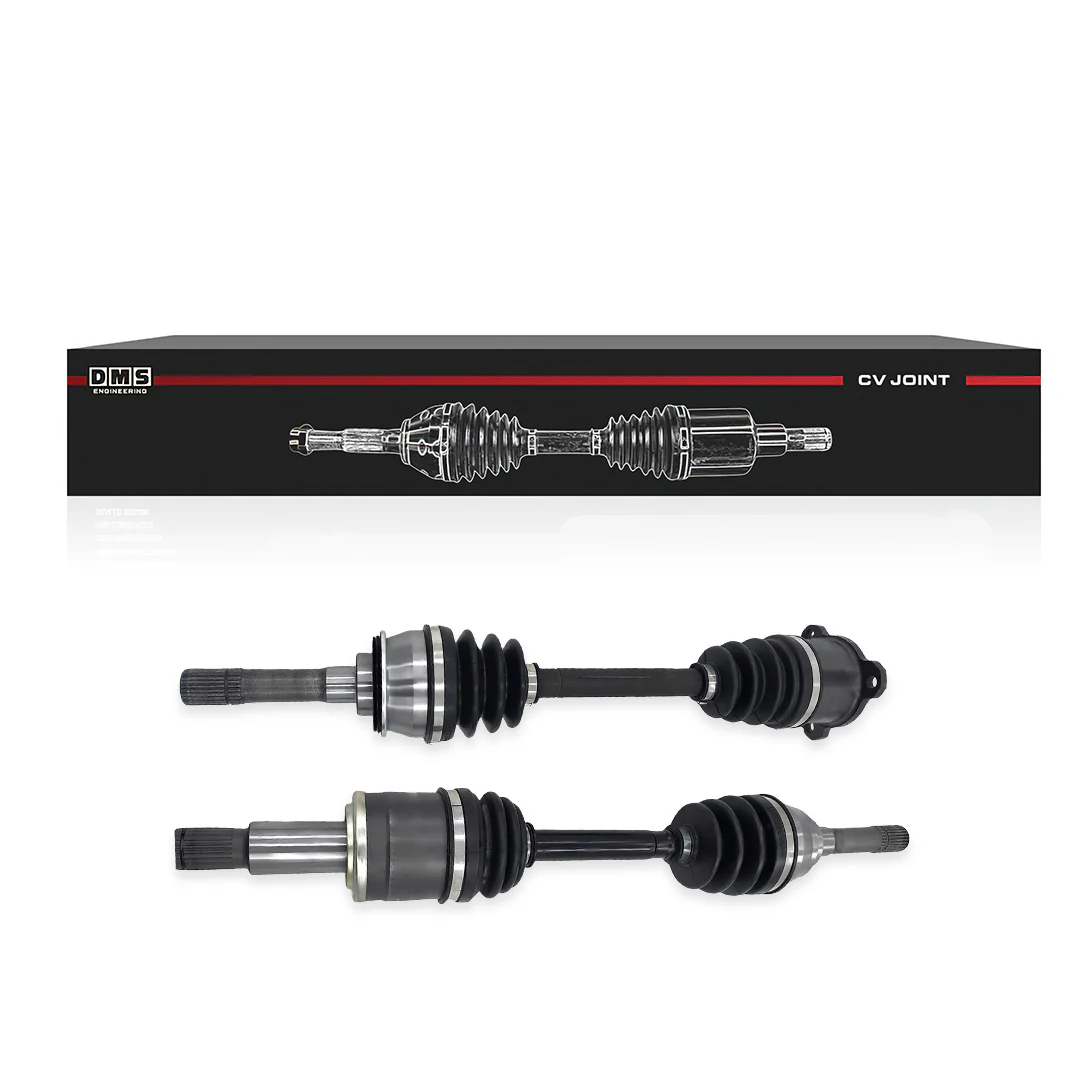

Compatible with Suzuki Grand Vitara SQ (1998 - 2005) models, our premium CV front drive shafts are manufactured using the latest CNC machined equipment. Made from top quality materials, these CV joints are tested to withstand high temperatures and heavy loads to ensure long life and reliable performance in all weather conditions.

Compatibility

• Fitment Models: Suzuki Grand Vitara SQ models from years 04/1998, 1999, 2000, 2001, 2002, 2003, 2004 and 0/2005.
• Variants: Sports, Slalom, Freestyle and Limited
• Note: Fits 2.0L J20A SQ420 / V6 2.5L H25A SQ625 engines.


Features

• Robust Design: Manufactured to meet or exceed OEM quality standards.

• Neoprene Boots: Features a high quality neoprene dust boots with extreme temperature resistance that helps prevent contamination.

• Moly Greased: Crafted with a specially formulated high-temperature moly grease to resists friction at high speed revolutions.

• Precision Machined Splines: Designed to match the OE specs and function to deliver accurate power transmission to your vehicle.

Specifications

• Condition: 100% Brand New
• Material: High quality alloy steel
• Compressed Length: 532mm (Left) / 607mm (Right)
• Spline Count Outer/Wheel Side and Inner/Diff Side: 26T
• Inboard Joint Type: Bolt On
• 3 Flange Diameter: 105mm
• Bolt Hole Diameter: 10.4mm
• 3 Bolt Flange Outer Diameter: 126.5mm

Package Contents

• CV Joint Drive Shafts: LH + RH

Ideal for Suzuki Grand Vitara  owners looking to replace their worn and aged-factory CV joint drive shafts to ensure smooth and reliable power transfer for a more comfortable driving experience.

As our components play a critical role in your vehicle's performance and safety, please verify compatibility with your specific vehicle model. Professional installation is strongly recommended.
